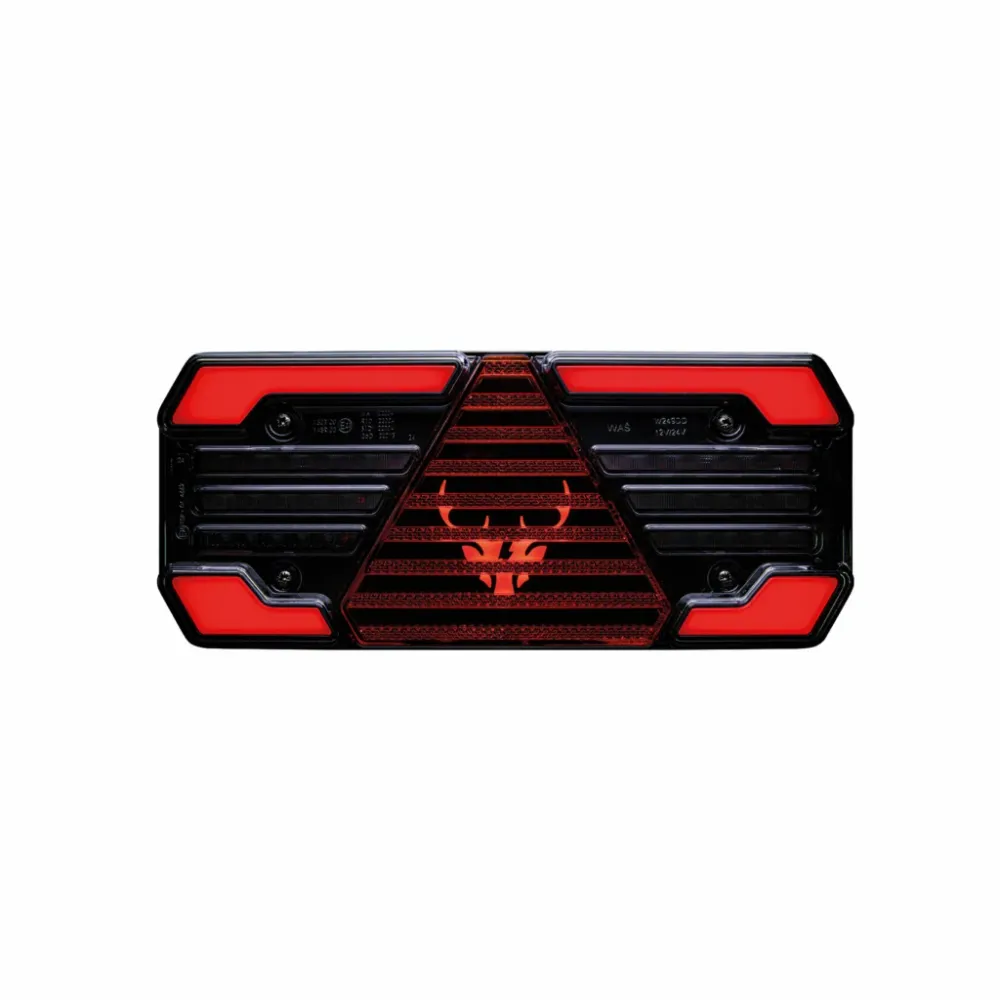

Freedom bakljus 4funk vänster för trailer.
-
- Color housingBlack
- UnitPCS
- Type of LampLED
- PCS LED´sRear position light: 51 x LED , Stop light: 12 x LED , Rear direction indicator light: 30 x LED, Reversing light: 12 x LED
- Voltage (V DC)12-24V DC
- Consumption (w) 12VRear position light: 12/24V max. 5,5W , Stop light: 12V/24V max. 5W, Rear direction indicator light: , 12V/24V max. 21W Reversing light: 12/24V max. 6W
- Consumption (w) 24VRear position light: 12/24V max. 5,5W , Stop light: 12V/24V max. 5W, Rear direction indicator light: , 12V/24V max. 21W Reversing light: 12/24V max. 6W
- FunctionsRear position light, Stop light, Rear direction indicator light, Reversing light, Reflective device
- IP-classIP6K9K
- Color lensClear tinted
- Color LED´sWhite, red, amber
- Position lightYes
- Connectionopen ends leads
- Cable length (mm)2000
- Material housing/chassiPP
- Material lensPMMA
- Length (mm)302
- Depth (mm)58,3
- Height (mm)131
- CC (mm)150
- Operating temperature-40 – +40°C
- ADR-approvedNo
- E-approvedYes
- According to regulationECE R148, R150
- EMCECE R10
- Black cableRear position light
- Red cableStop light (+)
- Yellow cableRear direction indicator light
- Mounting details includedwashers, nuts
